5R Swizard Light

General Information

Unpacking: Thank you for purchasing the Wizard 2R. Every light has been

thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all equipment necessary to operate the unit has arrived intact. In the event damage has been found or parts are missing, please contact our toll free customer support number for further instructions. Please do not return this unit to your dealer without contacting customer sup- port first.

Introduction: The Wizard 2R is a DMX intelligent barrel roller. The Wizard 2R has four operating modes; sound active mode, auto mode, master-slave and DMX controlled. The Wizard 2R has 9 DMX channels. The Wizard 2R can be set up as a stand alone fixture or in a Master/Slave configuration. For best results use fog or special effects smoke to enhance the beams projections.

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times.

To optimize  the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit, for future

reference.

Features

• Compact moonflower effect featuring a barrel mirrored scanner

• 9 DMX Channels

• 3 Operating Modes - Sound Active, Show Mode, & DMX Control

• Internal Microphone

• LCD Display for Address and Function Setting

• 7 Preprogrammed Shows

• PowerCon in and out

• DMX in and out

Warranty

The Wizard 2R carries a on e year (365 days) limited warranty.

Handling Precautions

Caution!

During operation the housing may become extremely hot. Avoid touching the unit with bare hands while in use.

Safety Precautions

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit!

• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6"(15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out- doors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by the manufacturer.

• Heat -This fixture should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers)that produceheat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a marked change in performance.

This fixture is fitted with a discharge lamp which is highly susceptible to  damage if  improperly handled.  Never  touch the lamp with your bare fingers as the  oil from your hands will shorten lamp life. Also, never move the fixture until the lamps have had ample time to cool. Remember, lamps are not covered under warranty conditions.

This unit  emits intense UV  radiation which is  harmful to the  eyes  and  skin. The intense luminance of the lamp can cause severe damage to the retina. Never operate this unit without it’s covers, these covers have been specially designed to shield against UV radiation.

Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the lamp at all times.

Avoid switching the fixture on and off repeatedly in short intervals as this will reduce lamp life and intensity.

To  achieve  the  intensity  associated  with  discharge  lamps,  these  lamps  use  gas sealed in  a  high  pressure environment to emit a brilliant output. Due to  the high pressure involved with the construction of the lamp, the lamp may explode during prolonged   extensive   use.   This   risk   is   increased   with   age,   added  care  is encouraged when dealing with older lamps. Extreme caution should be used when operating this or any fixture fitted with a gas discharge lamp. Never open this unit while in use.

VERY IMPORTANT: This is for your safety and the life length of the unit. The YODN

2R Discharge lamp has lifetime of 6000 hours.

We recommend periodically checking the lamp running time. See page When the lamp reaches the 6000 hour mark, or close to it, we strongly suggest you switch the lamp out.

Clear the LAMP RUNNING TIME after you have replaced the lamp.

Warning: DO NOT use this lamp more then 6000 hours. Using the lamp  any longer then the set life could seriously damage your unit.

Mounting

When installing the unit, the trussing or area of installation must be able to hold 10 times the weight without any deformation. When installing the unit must be secured with a secondary safety attachment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, removing, or servicing the unit.

Overhead mounting requires extensive experience, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and unit. If you lack these qualifications, do not attempt the installation yourself. These installation should be checked by a skilled person once a year.

The Wizard 2R is fully operational in three different mounting positions, hanging upside-down from a ceiling, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails (see next page). Never use the carrying handles for secondary attachment.

NOTICE: The suitable environmental temperature for this lighting fixture is between -25˚ C to 45˚ C. Do not place this lighting fixture in an environment where the temperatures are under or above the temperatures stated above. This will allow the fixture to run at its best and help prolong the fixture life.

Screw one clamp via a M12 screw and nut onto the supplied mounting bracket. Pull the safety-cable through the hole on the safety cable bracket that is attached to back of unit and over the trussing system or a safe fixation spot. Insert the end in the carabiner and tighten the safety screw.

Set Up

Power Supply: The Wizard 2R contains an electronic ballast, which will auto sense the voltage when it is plugged into a power source. With this switch there is no need to worry about the correct power voltage, this unit canbe plugged in anywhere.

DMX-512: DMX  is  short  for  Digital  Multiplex.  This  is  a universal   protocolused by most lighting and controller manufactures as a form of communication between intelligent fixtures  and  controllers.  A  DMX   controller sends DMX data instructions from the controller to the fixt ure. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX  fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using  several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected  in  a  DMX  line  does  not  influence   the  DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. Therefore, the first fixture controlled by the controller could be the last fixture in the chain. When a fixture  is  assigned  a  DMX  address of  1,  the  DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave  Operation): The  Wizard 2R  can  be  controlled via  DMX-512  protocol. The Wizard 2R has 9 DMX channels. The DMX address is set electronically using the controls on the rear side panel of the unit. Your unit and your DMX controller require a approved DMX-512 110  Ohm Data  cable for data input and data output(Figure 1).

If  you  are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all professional sound and lighting stores). Your cables should be made with a male and female XLR connector on either end of the cable. Also remember that DMX cable must be daisy chained and cannot be split.

Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR's outer casing. Grounding the shield could cause a short circuit and erratic behavior.

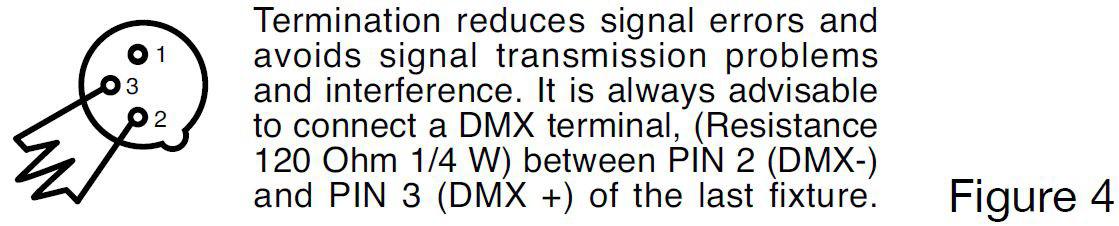

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator will decrease the possibilities of erratic behavior.

5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX- 512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The chart below details a proper cable conversion.

Manual Focus

The Wizard 2R can be manually focused using the knob located on the front of the unit directly in front of the lens. Turn the know clockwise and counter-clockwise until you desired focus is reached.

Power Cord Daisy Chain

With this feature you can connect the fixtures to one another using the IEC input and output sockets. The quantity that can be connected is 3 fixtures maximum for 120V and 3 fixtures maxi- mum for 240V. After the maximum fixtures has been reached you will need to use a new power outlet. They must be the same fix- tures. DO NOT mix fixtures.

Photometric Chart

Fuse Replacement

Locate the fuse holder is located at the rear of unit next to the power cord. Using a head screwdriver, remove the fuse holder. Remove the used fuse and replace with a matching fuse. Insert the fuse holder and fuse into the unit and secure the fuse holder.

Cleaning

Fixture Cleaning: Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning on a monthly basis. Periodic cleaning will ensure longevity, and crisp out-put.

1. Use normal glass cleaner and a soft cloth to wipe down the out- side casing.

2. Use a brush to wipe down the cooling vents and fan grill.

3. Clean the external optics with glass cleaner and a soft cloth every 20 days.

4. Clean the internal optics with glass cleaner and a soft cloth every 30-60 days.

5. Always be sure to dry all parts completely before plugging the unit back in.

Trouble Shooting

Trouble Shooting: Listed below are a few common problems that you may encounter, with solutions.

No light output from the unit;

1. Be sure the external fuse has not blown. The fuse is located next to the power cord connection.

2. Be sure the fuse holder is completely and properly seated. Unit does not respond to sound;

3. Low frequencies (bass) should cause the unit to react to sound.

4. Tapping on the microphone, quiet or high pitched sounds may not activate the unit.

Specifications

Compact Barrel Mirrored Scanner with a bright YODN MSD 2R source

4 Operational Modes: DMX control, Auto, Master-Slave Mode, & Sound Active

9 DMX Channels

7 Built-in Programs

7 colors + white w/ Split Colors

16 Fixed Gobo Patterns + Spot & Gobo Shake

Reflector Rotation Mirror produces a 360-degree rotation

Independent gobo and color wheels

Gobo scroll mode

Beam Angle: 100 Degrees

180° pan / 360° tilt continuous barrel rotation

Shutter: Strobe & Pulse effect; random strobe slow to fast

Electronic Dimming: 0% - 100% Fan Cooled

Stepper motors with micro stepping

Power consumption: 202W

3-pin XLR In/Out

PowerCon IN/OUT to daisy chain power (up to 3 @ 110V and 6 @ 230V)

Multi-voltage Operation: 100-240V, 50Hz/60Hz

Lamp: YODN MSD 2R discharge 132W, 8,000K – 6,000 hr. average long life

Dimensions (LxWxH): 20.25” x 20.25” x 14”/ 512 x 516 x

354mm

Weight: 22 lbs. / 10kgs

Auto Sensing Voltage:

This fixture contains an electronic ballast, which will auto sense the voltage when it is plugged into the power source. Please

Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
