PIXEL SQUARE 2.0 12x12 Led Pixel-Mapping Square

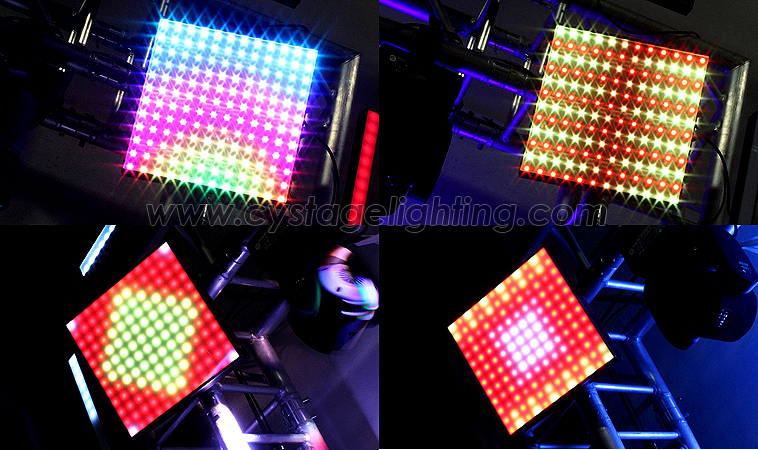

 PIXEL SQUARE 2.0 is a LED video panel for the rental market with 25 mm pixel pitch  and extensive range of optical accessories for a wide variety of looks (black and white milk included, transparent on demand). Each panel features 12x12 144 LED RGB/FC LEDs with individual pixel control, 120° viewing angle. The mechanics ofLed Pixel-Mapping Square have been studied to grant a great mounting flexibility through a sliding hardwares on the back for truss application and on the side for multiple vertical linking.

Light Source and Optics:

• 12x12 (144 total) SMD5050 RGB/FC high-efficiency LEDs

• Luminous flux: black cover = 725 NIT, milky cover = 2900 NIT, transparent cover = 3290 NIT

• Pixel2pixel control

• Viewing angle: 120°

• Pixel pitch: 25 mm

• Color synthesis: RGB/FullColor mixing (>16 million colors)

• LEDs average life span: >50'000h

Electronics and features:

• Power and signal through DIGIDRIVER (optional)

• Art-Net and Kling-Net&DMX control protocol supported

• Channels Art-Net: 432

• Channels Dmx:8/432

Structure and Power supply:

• Sturdy aluminum profile

• Internal Protection: IP20

• Sliding bracket for truss rigging and vertical hardware for connection of more units

• Black matte filter (mounted), white milk filter (included), transparent filter (optional)

• Power and Current: 51 W, 0.36 A @ 120 V, 60 Hz

• Power and Current: 57 W, 0.21 A @ 208 V, 60 Hz

• Power and Current: 63 W, 0.18 A @ 230 V, 50 Hz

• Weight: 2,6 kg

• Dimensions (WxHxD): 300x300x118 mm
