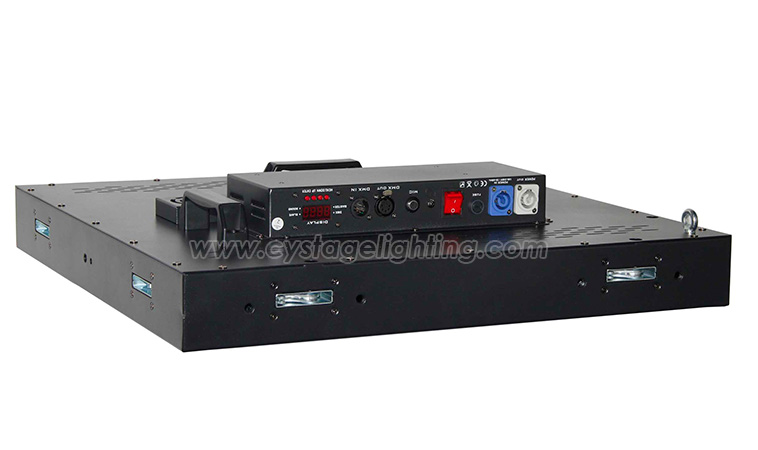

BLAZEPIX 25TR 25x10W COB RGB 3in1 LED Matrix Light

BLAZEPIX 25TR 25x10W COB RGB 3in1 LED Matrix Light

• 5 x 5 COB LED high output Wash/Blinder Matrix panel.
• Saturated color delivered in soft blends or dynamic pixel map effects.
• 60° beam angle produces wide viewing angle and excellent color mixing.
• Rugged imported proprietary locking system for reliable assembly of large displays.

Add to quote Next Product

Optical

• Light Source: 25x10-Watt COB TRI LEDs (RGB: 3 in 1)

• Refresh Rate: 3.6KHz

• Life Expectancy: 50,000 Hrs

• Beam Angle: 60 degree

• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color

Specifications

• Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect

• Individual Pixel controllable in 25 & 75 channel DMX modes

• 4x Pixel Flip options changes pixel orientation

• Built-In preset colors and programs

• Flicker Free operation (No flickering on camera)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• Convenient fast-locking system, enable to assemble a pixel, an make as a wall for background

• Single yoke allows fixture to be mounted

• Fan Cooled

Connections

• Power connections: Power-con in/out

• Power linking: Up to 12 units @ 120V ~ Up to 22 units @ 230V

• Data: 3 & 5-pin XLR chassis mount connectors for DMX linking

Control

• Control Protocol: DMX 512

• DMX Channels: 1,3,5,25,75 DMX channels selectable.

• On Board: LED DMX 4-Button menu

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Draw: 300W

Dimensions / Weight:

• Dimensions: 580x580x120mm

• Weight:13.0kg
