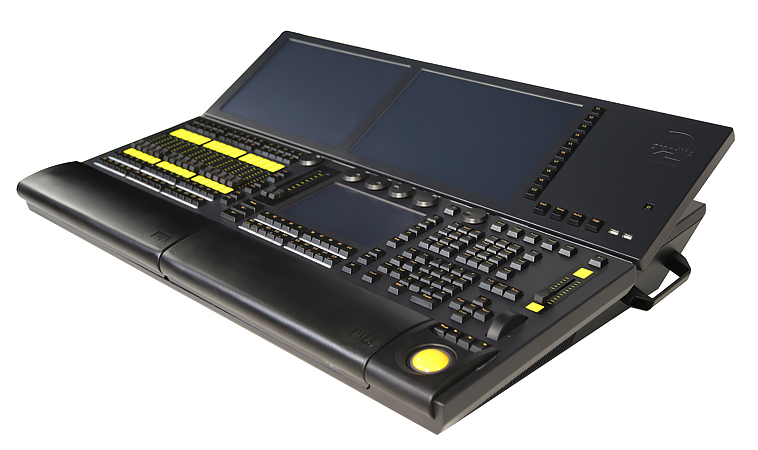

MA 2-Lighting / P2

➤: Professional Linux operating system

➤: Built-in 2 electric lift 15.4-inch industrial full-view touch screen, 1 9-inch industrial full-view touch screen

➤: powerful i5CPU, 4G memory, built-in solid state drive, Geforce graphics 2

➤: 6 DMX output ports, 1 composite DMX input port (can be set as output), and can connect up to 65536 channels with NPU

➤: 15 electric replay faders with sensor function (60mm), 50 executive buttons

➤: 1 total control putter, 1 dimming wheel

➤: 1 controllable XY axis high precision imported trackball

➤: 2 A/B field electric push rods (100mm)

➤: 6 imported industrial grade wear-resistant encoders (with Push function)

➤: 2 Gigabit Ethernet ports, supporting MA NET, ARTNET, ETC NET2, PATHPORT, SCAN, SHOWNET, KINET1 signals

➤: 5 USB ports, 1 backup USB port

➤: 2 work light interfaces

➤: 2 DVI interfaces, expandable two displays

➤: MIDI input and output interface, LTC/SMPTE time code, audio input and output, microphone input interface

➤: Built-in 1 drawer, built-in push-pull professional yellow backlit mechanical keyboard (backlight brightness adjustable)

➤: Wide-voltage industrial power supply 100V-240V 50/60Hz

➤: Built-in high power UPS uninterruptible power supply

➤: Support RDM function
