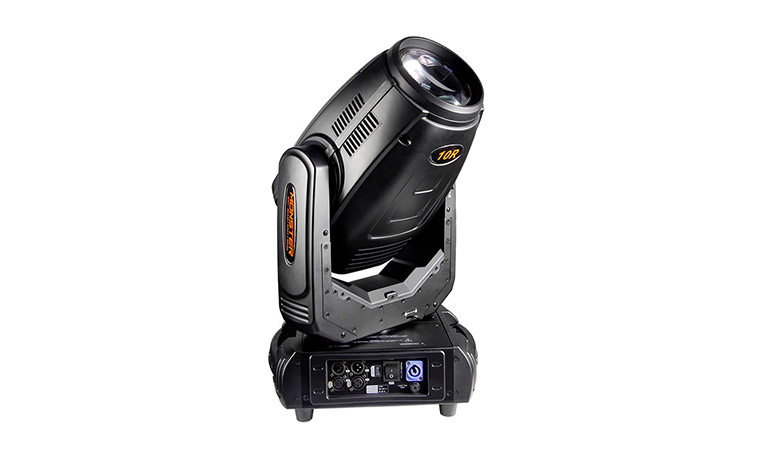

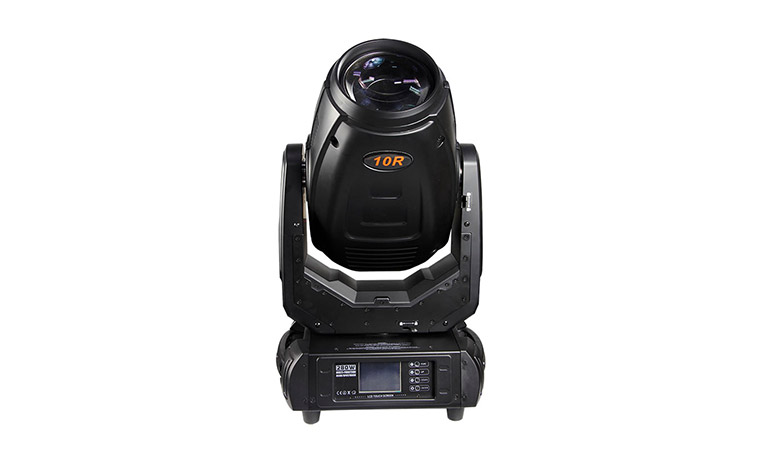

CM-280BSW 10R 3in1 Moving Head

A true Spot/Beam/Wash hybrid Moving Head fixture, the DM-280BSW Hybrid 10R features dual Prism Layering, GOBO Morphing of dual gobo wheels, motorized zoom and motorized focus. Other professional features include: Frost filter to turn the hard edge beam to a wash, 6 & 8-facet rotating prisms, stepper motors for quick, precise movement.

The Hybrid 10R Moving Head fixture is powered by the revolutionary YODUN Platinum 10R discharge lamp technology (8000˚K, 1,500 hr). The powerful Platinum 16R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The DM-280BSW Hybrid 10R is much faster than previous CY moving heads because it is much lighter in weight and more compact than other moving heads in its class.

Specifictaion:

Lamp: Discharge short arc lamp with integrated reflector

Approved model: YODN MSD 280R10

Average Lamp Life: 2,000 hrs. (Eco mode)

Control: Automatic and remote on/off

Ballast: Electronic

Optical System

Beam mode: 75,250 lx @ 20 m distance

Spot mode: 82,400 lx @ 5m distance

Dichroic glass reflector integrated with the lamp for maximizing the light efficiency

Zoom range: 2.5°-10° beam application; 5° – 20° spot application

Electrical Specification

Power supply: Electronic auto-ranging

Input voltage range: 100–240 V, 50/60 Hz

Power consumption: 470 W at 230 V / 50 Hz

ROHS compliant

CE compliant

Fixation option: Pan/Tilt-lock mechanism

Thermal Specification

Maximum ambient temperature: 45 °C (104 °F)

Maximum surface temperature: 100 °C (212 °F)

Control and Programming

Protocols: USITT DMX-512

Control channels: 16, 24

2 DMX protocol modes

Stand-alone operation

LCD touch screen

Pan/Tilt resolution: 8 or 16 bit

Movement control: Tracking and vector

Color wheel positioning: 8 or 16bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16bit

Static gobo wheel positioning: 8 bitt

Prism indexing & rotation: 8 bit

Frost: 8 bit

Zoom: 8 or 16bit

Focus: 8 or 16bit

Dimmer: 8 or 16bit

Data in/out: Locking 3-pin & 5-pin XLR

Power input: Power-Con

Electromechanical Effects

Color wheel: 13 dichroic filters + white

Rotating Gobo wheel: 9 rotating, indexable and replaceable “SLOT&LOCK” glass gobos + open

Static Gobo wheel: 14 gobos + open

Prism 1: 8-facet circular prism rotating in both directions at different speeds

Prism 2: 6-facet linear prism rotating in both directions at different speeds

Frost effect: Separate, variable

Dimmer/Shutter: Full range dimming and variable strobe effect

Motorized zoom and focus

Pan: 540°

Tilt: 270°

Rigging

Mounting points: 2 pairs of ¼-turn locks

2 x Omega bracket with ¼-turn quick locks

1 x Safety attachment point

Package size: 48*46*59 cm

G.W: 17KG
