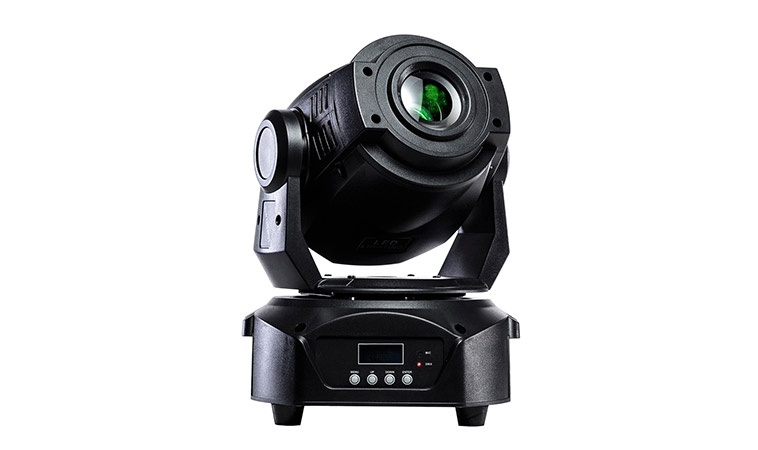

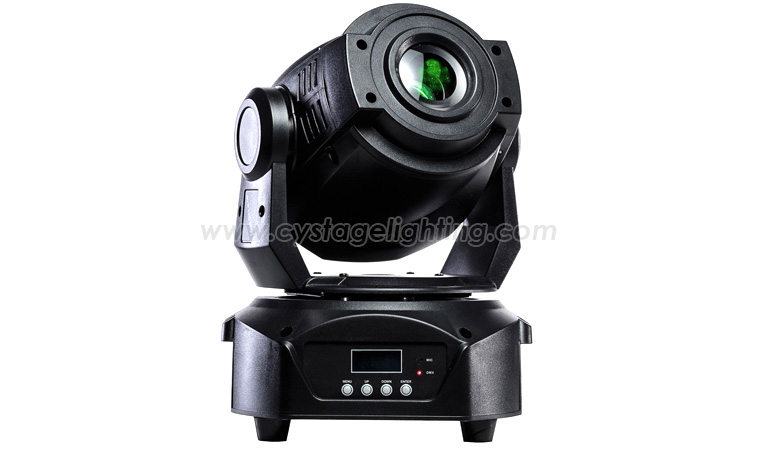

L1 SPOT90 90W LED Spot Moving Head

• 150W High Output White LED, 2200LUX@5M, 7800K.
• Spot angle 14°, extremely even spot with flawless field consistency.
• Stepper motors for quick, precise movement.
• Compact size and light weight, easy for installing.
• Super quiet with efficient low noise fan cooling system.

Add to quote Next Product

Optical:

• Light Source: 150W high output white led, 7800K

• Light output: 2200 LUX @ 5M

• Life Expectancy: 50,000 Hrs.

• Beam Angle: 14 degrees

SPECIFICATIONS:

• Color wheels: 7 colors + Split Colors

• 1 static Gobo Wheel: 8 gobos +white, wheel rotation and shake

• 1 Rotate Gobo Wheel: 6 gobos +white, wheel rotation and shake

• Prism: 8-facet Prism, bi-directionally rotatable at variable speeds

• Strobe: High speed strobe effect with 1-25 flashers per second

• Strobe Rate: 0.3-12HZ

• Electronic Dimming: 0% - 100%

• Focus: Electronic focus

PAN/TILT

• Pan/Tilt: 540°/ 270°. Built-In Pan/Tilt Macros

• 16-Bit Pan/Tilt Positioning, Auto X-Y repositioning

• Stepper motors with micro stepping

• Rapid and extensive pan and tilt movements

Connections:

• Power Input: Power-CON in/out

•Daisy Chain up to 8 fixtures max (@ 120V); 16 fixtures max (@ 230V)

• Data: 3pin DMX in/out

• Two 1/4 turn fastening Omega Clamps

Control:

• Control Protocol: DMX 512, Master-Slave, Sound, Auto operation and Computer control software.

• DMX Channel Modes: 11/14 DMX Channels USITT DMX-512. Internal program available.

• On Board: 4-Button LCD DMX display

Electrical:

• Power Consumption: 120W

• Multi-voltage: 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions: 24x24x37cm

• Package: 35x34x37.5cm

• Net weight: 6.5kg

• Gross weight: 8.9kg
